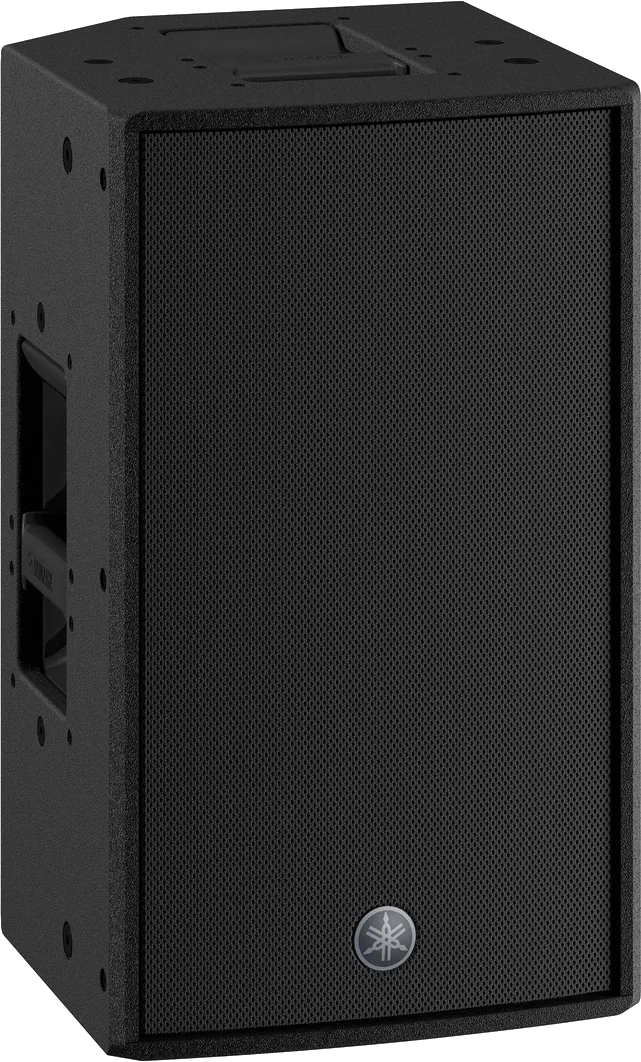

Yamaha CZR10 Passive Speaker
by Yamaha
10-inch two-way passive loudspeaker from Yamaha's CZR series with 1,400 W peak power handling, built for external amplification.
Contact for pricing
Request Quote
Specifications
- Type 2-way passive loudspeaker, bass-reflex
- LF Driver 10-inch cone, neodymium magnet
- HF Driver Compression driver, titanium diaphragm
- Power Handling 350 W noise / 700 W program / 1,400 W peak
- Frequency Range 43 Hz – 20 kHz (–10 dB)
- Max SPL 127 dB peak (131 dB bi-amp)
- Crossover 2.5 kHz, passive / bi-amp switchable
- Impedance 8 Ω
- Connectors 2× speakON NL4 (parallel)
- Mounting 35 mm pole socket, M8 rigging points
Yamaha CZR10
The smaller sibling of our CZR12. A passive 10-inch two-way cabinet with a compact footprint that still reaches down to 43 Hz, so it holds up as a full-range box in smaller rooms before a subwoofer is needed. Neodymium drivers keep it light enough for quick setups and stand mounting.
Because it’s passive, the CZR10 runs from our Powersoft or Lab.gruppen amplifiers, which gives us full control over tuning, delay, and limiting. A rear switch selects passive or bi-amp operation, and the 35 mm pole socket and M8 rigging points cover both stand-mounted and flown setups.
Suggested Uses
- Mains for receptions, meetings, and smaller events
- Stage monitors and side fills
- Front fills and delay positions in a larger system
- Pole-mounted over a Yamaha DXS18XLF-D subwoofer for a full-range PA
- Houses of worship, school auditoriums, and breakout rooms
What’s Included
- CZR10 speaker(s) as specified
- speakON speaker cable per cabinet
- Amplification available separately or as part of a system
- Speaker stands or pole mounts available on request
Ready to Rent?
Contact us today to check availability and get a quote for your event.
