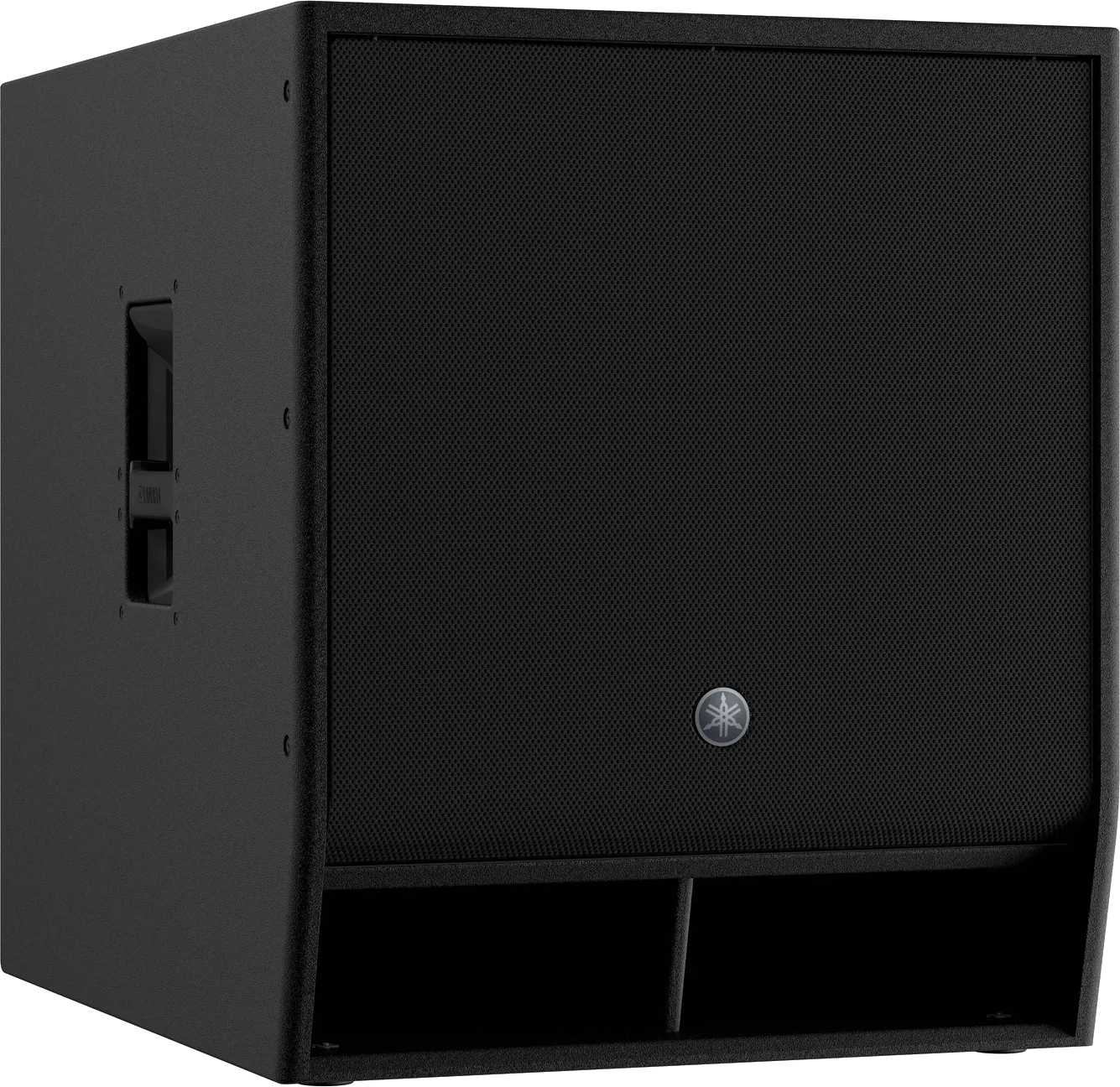

Yamaha DXS18XLF-D Subwoofer
by Yamaha
1,600 W powered 18-inch subwoofer with Dante networking and D-XSUB processing, delivering 136 dB peak SPL with extension down to 30 Hz.
Contact for pricing
Request Quote
Specifications
- Amplifier 1,600 W dynamic / 1,200 W continuous, Class-D
- Driver 18-inch woofer, 4-inch voice coil
- Frequency Range 30 Hz – 150 Hz (–10 dB)
- Max SPL 136 dB peak
- DSP 96 kHz with D-XSUB (Normal / Boost / Xtended LF)
- Cardioid Mode Preset for multi-sub directional arrays
- Analog I/O 2× XLR/TRS combo inputs, 2× XLR thru outputs
- Network Dante 2-in / 2-out on etherCON (primary/secondary)
- Enclosure Bass-reflex, plywood, with casters
- Weight 48.9 kg (107.8 lb)
Yamaha DXS18XLF-D
An 18-inch self-powered subwoofer built for events that need real low-end extension, not just more level. The DXS18XLF-D reaches down to 30 Hz with 1,600 W of Class-D power behind a long-excursion 18-inch driver. Its onboard 96 kHz DSP handles crossover, limiting, and voicing without any outboard processing.
The “-D” model adds Dante, so audio arrives over the same network as the rest of the system and multi-sub setups don’t need extra analog snake runs. D-XSUB processing gives us Normal, Boost, and Xtended LF voicings to match the program material. The built-in cardioid mode lets us steer bass energy away from the stage when two or more subs are deployed together.
We pair the DXS18XLF-D with our Yamaha CZR passive tops and Powersoft amplification for a full-range PA that scales from receptions to outdoor concerts.
Suggested Uses
- Low-end extension for concerts and live music
- DJ sets, dances, and receptions
- Corporate general sessions with video playback or walk-in music
- Outdoor events and summer concert series
- Cardioid sub arrays where stage spill needs controlling
What’s Included
- DXS18XLF-D subwoofer(s) as specified
- Power cable per cabinet
- XLR or Dante (etherCON) signal cabling as required
- Pole for mounting a top speaker on request
