TW AUDiO T20 Loudspeaker
by TW AUDiO
TW AUDiO T20 rental in Connecticut: a slim 2×10-inch passive two-way loudspeaker with 138 dB max SPL and a rotatable horn, for mains, fills, and arrays.
Contact for pricing
Request Quote
Specifications
- Drivers 2 × 10-inch LF, 1.4-inch exit HF compression driver (3-inch diaphragm)
- Frequency Range 60 Hz – 18 kHz
- Max SPL 138 dB @ 1 m
- Sensitivity 106 dB (1 W / 1 m)
- Power Handling 1,000 W program / 2,000 W peak
- Impedance 8 Ω (passive)
- Dispersion 90° × 50° or 60° × 40°, rotatable horn
- Connector NL4
- Dimensions 23.6 × 11.8 × 15.7 in (600 × 300 × 400 mm)
- Weight 48 lb (21.8 kg)

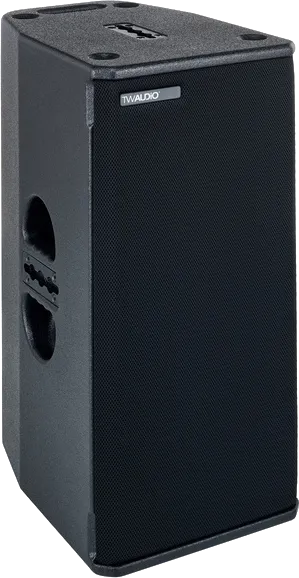

TW AUDiO T20
The T20 is a slim, high-output two-way loudspeaker from German manufacturer TW AUDiO. Two 10-inch woofers and a 1.4-inch compression driver produce up to 138 dB from a cabinet only 11.8 inches wide, so it delivers far more than a typical 12-inch box without taking up much room on a stage or in a sightline.
The horn can be swapped between 90° × 50° and 60° × 40° coverage and rotated without tools. That lets the same cabinet work as a wide-coverage main, a long-throw speaker for deep rooms, or a cabinet laid on its side as a front fill or drum fill. Pair it with our Yamaha DXS18XLF-D subwoofers for full-range concert sound.
Suggested Uses
- Main PA for concerts, outdoor events, and larger corporate events
- Front fills, side fills, and delays in a larger system
- Speech and music for galas, ceremonies, and graduations in large rooms or outdoors
- Theatre reinforcement where speakers need to stay low-profile
What’s Included
- T20 loudspeaker(s) as specified, with external amplification
- NL4 speaker cabling
- Subwoofers, stands, and an engineer available as part of a sound system rental
Ready to Rent?
Contact us today to check availability and get a quote for your event.
